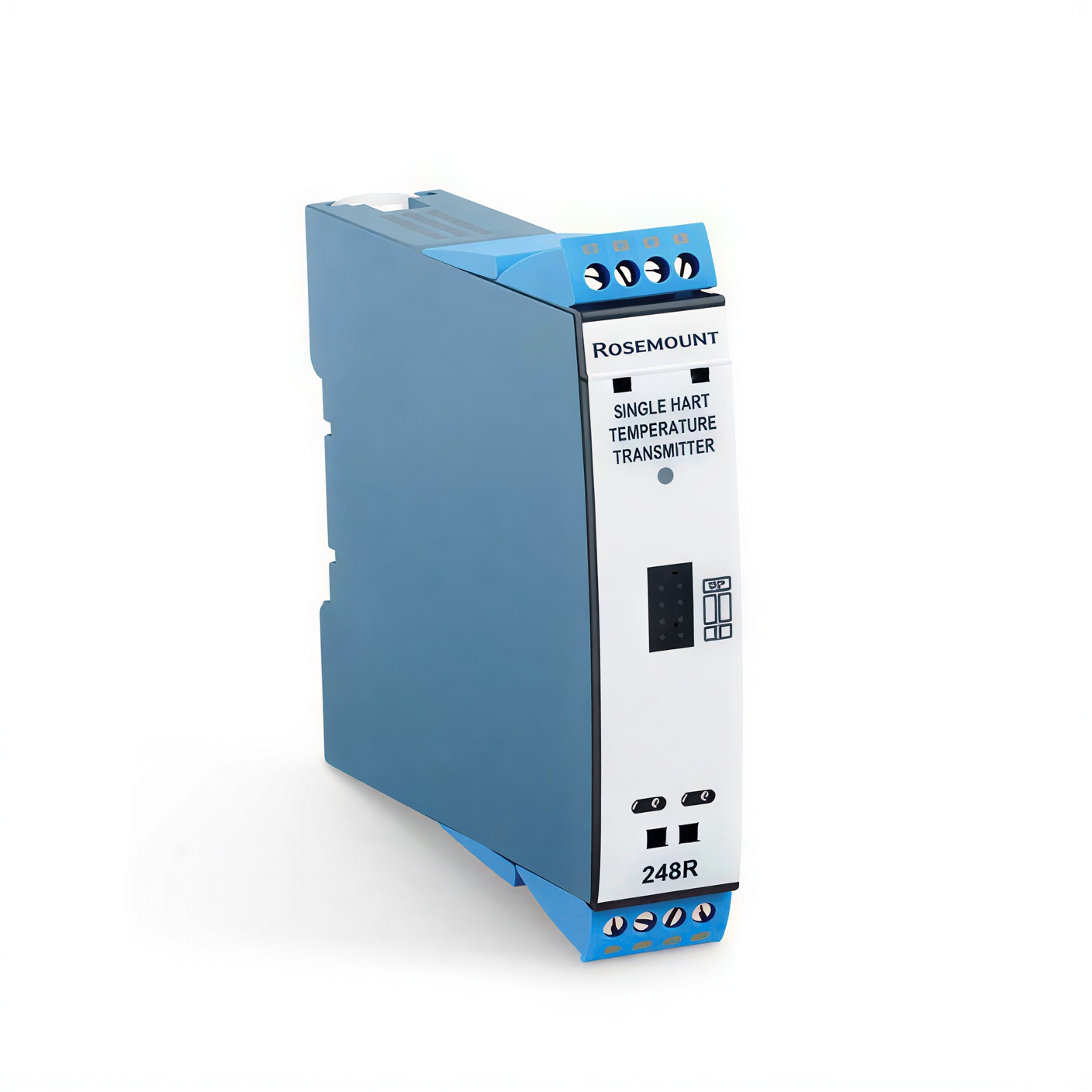

Rosemount 248R Temperature Transmitter
Rosemount 248R Temperature Transmitter is a compact rail-mounted device designed for reliable single-point temperature measurement in industrial applications. It offers high accuracy up to ±0.20°C, fast response time, and HART communication, making it a cost-effective solution for standard process monitoring.
Looking for a Quote? Contact Us Now
Categories: Temperature Transmitter
Description
The Rosemount 248R Temperature Transmitter is engineered as a DIN rail-mounted unit, providing flexible installation in control panels and junction boxes. It supports a wide range of input types including 2-, 3-, and 4-wire RTDs, thermocouples, millivolt, and ohm signals, allowing compatibility with various temperature sensing elements. With a reference accuracy of ±0.20°C or ±0.1% of span and a fast update time of less than 0.5 seconds, it ensures reliable and responsive temperature measurement in dynamic process conditions.
In addition, the transmitter features 4–20 mA output with HART protocol for easy integration into distributed control systems (DCS) and asset management platforms. It operates within a temperature range of -40°C to 85°C and includes input/output isolation up to 500 Vac for enhanced safety and signal stability. Built-in diagnostics such as open/short sensor detection help identify faults early, reducing downtime and maintenance costs. Its PC-programmable interface and compact design make configuration simple while lowering overall installation costs compared to direct sensor wiring.
QTech Safety is a leading supplier of Rosemount 248R Temperature Transmitter in Ireland, offering competitive prices and fast worldwide shipping across United Kingdom (UK), Germany, France, Italy, Spain, United States USA, Canada, Mexico, and Western Australia (Perth). Buy Rosemount Temperature Transmitter from one of Ireland’s most trusted industrial safety equipment suppliers.
Features of Rosemount 248R Temperature Transmitter
- Accuracy up to ±0.20°C or ±0.1% of span
- Rail-mounted (DIN rail) design for panel installation
- Supports RTD, thermocouple, mV, and ohm inputs
- Output: 4–20 mA with HART communication
- Fast response time: < 0.5 seconds update
- Operating temperature: -40°C to 85°C
- Input/output isolation up to 500 Vac
- Built-in sensor diagnostics (open/short detection)
- PC-configurable for easy setup
Technical Specifications of Rosemount 248R
- Type: Rail mount temperature transmitter
- Input: Single sensor – RTD (2/3/4-wire), Thermocouple, mV, ohm
- Output: 4-20 mA with HART
- Accuracy: ±0.20 °C (±0.36 °F) or 0.1% of span (whichever is greater)
- Power supply: 12–42.4 V DC
- Ambient temperature: -40 to +85 °C (-40 to +185 °F)
- Mounting: DIN rail or wall mount
- Enclosure: Plastic housing
- Isolation: 500 V AC rms (input/output)
- Design: Compact rail mount, epoxy encapsulated electronics
- Certifications: Hazardous area approvals available
Temperature Transmitter Part Number & Configuration Guide
Standard (Example) Part Number
248RANARK
This is a reference configuration for the Rosemount Temperature Transmitters. It represents one commonly supplied setup and helps customers understand how the part number is structured.
Configurable Part Number Format
248RAXXXX
Each X / XX in the part number indicates a selectable option that can be customized based on your application requirements such as Certifications, Software Configuration, NAMUR Alarm, Saturation Levels, Calibration, Line Voltage Filter, Mounting & Warranty.
✅ Important: Final part number depends on the exact configuration needed for your machinery, environment, and monitoring system.
Applications
The Rosemount 248R Temperature Transmitter is commonly used in industrial calibration and testing applications, including:
- Control panel temperature monitoring systems
- Industrial process temperature measurement
- HVAC and utility system monitoring
- Chemical and pharmaceutical process control
- Food & beverage temperature monitoring
