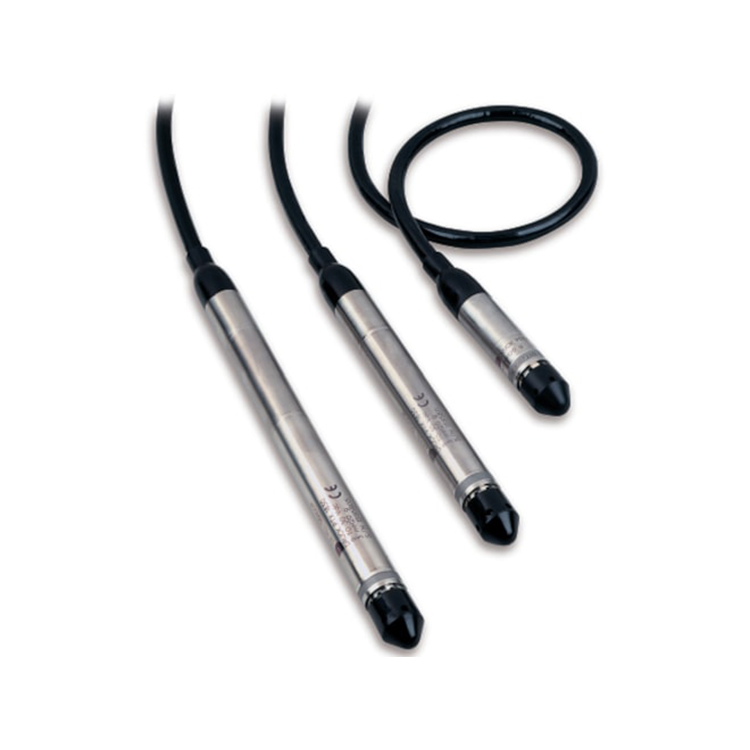

Druck 1800 Series Submersible Pressure Transmitters
Druck 1800 Series Submersible Pressure Transmitters is a Submersible pressure transmitter designed for accurate hydrostatic level measurement in water and wastewater applications. Featuring durable titanium construction, high accuracy up to ±0.10% FS, and outputs in 4–20 mA or mV, it ensures reliable long-term performance in harsh and continuously submerged environments.
Looking for a Quote? Contact Us Now
Categories: Pressure Sensors
Description
The Druck 1800 Series Submersible Pressure Transmitters are high-performance sensors designed for accurate measurement of hydrostatic liquid levels in a wide range of applications. Featuring a fully submersible, slim-line 17.5 mm titanium construction, these transmitters provide excellent durability and corrosion resistance, making them suitable for long-term deployment in harsh environments. With measurement ranges from 0.75 mH₂O up to 600 mH₂O and accuracy up to ±0.10% full scale (optional ±0.06%), they deliver precise and reliable level monitoring.
Built with advanced micro-machined silicon sensing technology, the 1800 Series offers stable performance with ±0.1% FS/year long-term stability and outputs available in 4–20 mA (PTX) or millivolt (PDCR) configurations. The sensors are supplied with vented polyurethane or hydrocarbon-resistant cables, reinforced with Kevlar for strength and reliability. Designed for continuous immersion (IP68), they provide a dependable solution for water, wastewater, and environmental level measurement applications.
QTech Safety is a leading supplier of Druck 1800 Series Submersible Pressure Transmitters in Ireland, offering competitive prices and fast worldwide shipping across United Kingdom (UK), Germany, France, Italy, Spain, United States USA, Canada, Mexico, and Western Australia (Perth). Buy Druck Pressure Sensors from one of Ireland’s most trusted industrial safety equipment suppliers.
Features of Druck 1800 Series Submersible Pressure Transmitters
- Pressure range: 0.75 to 600 mH₂O
- Accuracy: ±0.10% FS (±0.06% optional)
- Output options: 4–20 mA (PTX) or mV (PDCR)
- Fully submersible IP68 design for continuous immersion
- Robust titanium construction (17.5 mm diameter)
- Long-term stability: ±0.1% FS/year
- Vented polyurethane or Hytrel® cable with Kevlar reinforcement
- Gauge or absolute pressure measurement
- Optional ATEX/IECEx intrinsic safety approval
Technical Specifications of Druck 1800 Series
- Type: Submersible pressure transmitter for level measurement
- Pressure ranges: 0.75 m to 600 m H₂O (1 psi to 850 psi)
- Accuracy: ±0.1% FS or ±0.06% FS
- Output: 4-20 mA (2-wire)
- Construction: Titanium body and diaphragm
- Cable: Polyurethane or Hytrel vented cable (custom lengths available)
- Operating temperature: -40°C to +80°C
- Protection rating: IP68 (submersible up to 600 m)
- Media compatibility: Water, seawater, and compatible fluids
- Design: Slim diameter (typically 17.5 mm), robust for long-term immersion
Pressure Sensor Part Number & Configuration Guide
Standard (Example) Part Number
PDCR1830-2.46ftH2O-G-3 Feet of Cable
This is a reference configuration for the Druck Pressure Sensor. It represents one commonly supplied setup and helps customers understand how the part number is structured.
Configurable Part Number Format
PDCR1830-XXXftXXX-X-X Feet of Cable
Each X / XX in the part number indicates a selectable option that can be customized based on your application requirements such as Sensor Type, Electrical Connection, Diameter, Output Option, Compensated Temperature Range, Accuracy, Pressure Type, Pressure Unit, Pressure Range & Pressure Connector.
✅ Important: Final part number depends on the exact configuration needed for your machinery, environment, and monitoring system.
Applications
The Druck 1800 Series Submersible Pressure Transmitters is commonly used in industrial calibration and testing applications, including:
- Groundwater and borehole level monitoring
- Wastewater and sewage treatment systems
- Rivers, canals, and reservoir level measurement
- Tank level monitoring (industrial and marine)
- Coastal and seawater environmental monitoring
